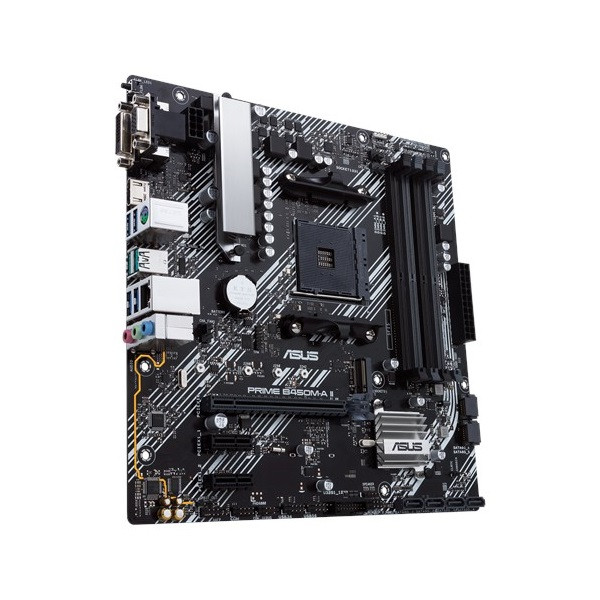

ASUS Alaplap AM4 PRIME B450M-A II AMD B450, mATX

• Részletek
• Adatok
• Vélemények

Részletek

• CPU
  AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors *
  * Refer to www.asus.com for CPU support list
• Chipset
  AMD B450
• Memory
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor.
• Graphic
  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
  1 x D-Sub
  1 x DVI-D
  1 x HDMI 2.0b
  *Graphics specifications may vary between CPU types.
• Expansion Slots
  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x4 mode)
  AMD B450 chipset
  2 x PCIe 2.0 x1
• Storage
  Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *¹
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  Athlon™ with Radeon™ Vega Graphics Processors : *¹
  1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors :
  2 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
• LAN
  Realtek® RTL8111H
  ASUS LANGuard
• Audio
  Realtek 7.1-Channel High Definition Audio CODEC *
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - LED-illuminated design
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  Rear USB Port ( Total 6 )
  2 x USB 3.2 Gen 2 (up to 10Gbps) port(s)(2 x Type-A)
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)
• Software Features
  ASUS Exclusive Software
  Armoury Crate
  - AURA Creator
  - AURA Sync
  AI Suite 3
  - Performance and Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert 2+
  PC Cleaner
  - EZ update
  - System Information
  ASUS CPU-Z
  AI Charger
  ASUS EZ Installer
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  ASUS 5X PROTECTION III
  - ASUS DIGI+ VRM
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  AURA Sync
  - AURA RGB header
  ASUS Lighting Control

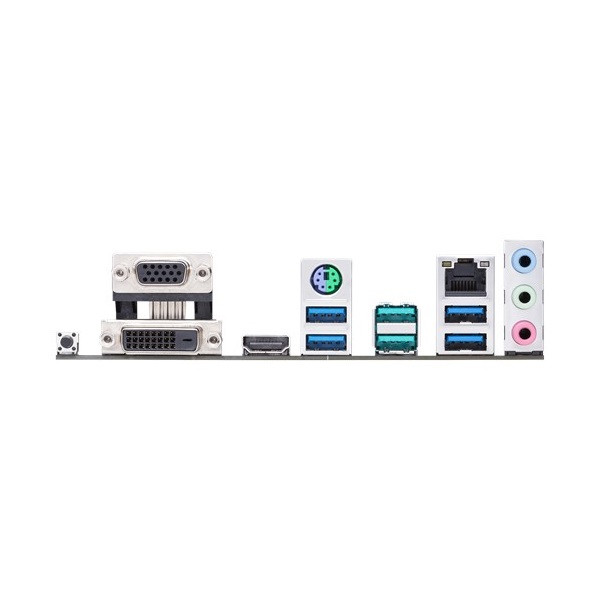

• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
  4 x USB 3.2 Gen 1 (blue) Type-A
  3 x Audio jack(s)
  1 x BIOS FlashBack^™ Button(s)
• Internal I/O Ports
  1 x CPU Fan connector(s) (1 x 4 -pin)
  2 x Chassis Fan connector(s) (2 x 4 -pin)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Speaker connector
  1 x RGB Header
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Screw Package
  1 x Supporting DVD
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
• Operating System
  Windows® 10 64-bit
  Windows® 7 64-bit *²
• Form Factor
  mATX Form Factor
  9.6 inch x 9.5 inch ( 24.4 cm x 24 cm )
• Note
  1*The M.2 slot shares bandwidth with the SATA6G_5/6 ports, and therefore the SATA6G_5/6 ports cannot be used when an M.2 device is installed.
  2*To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.

Adatok

EAN:

4718017924986
