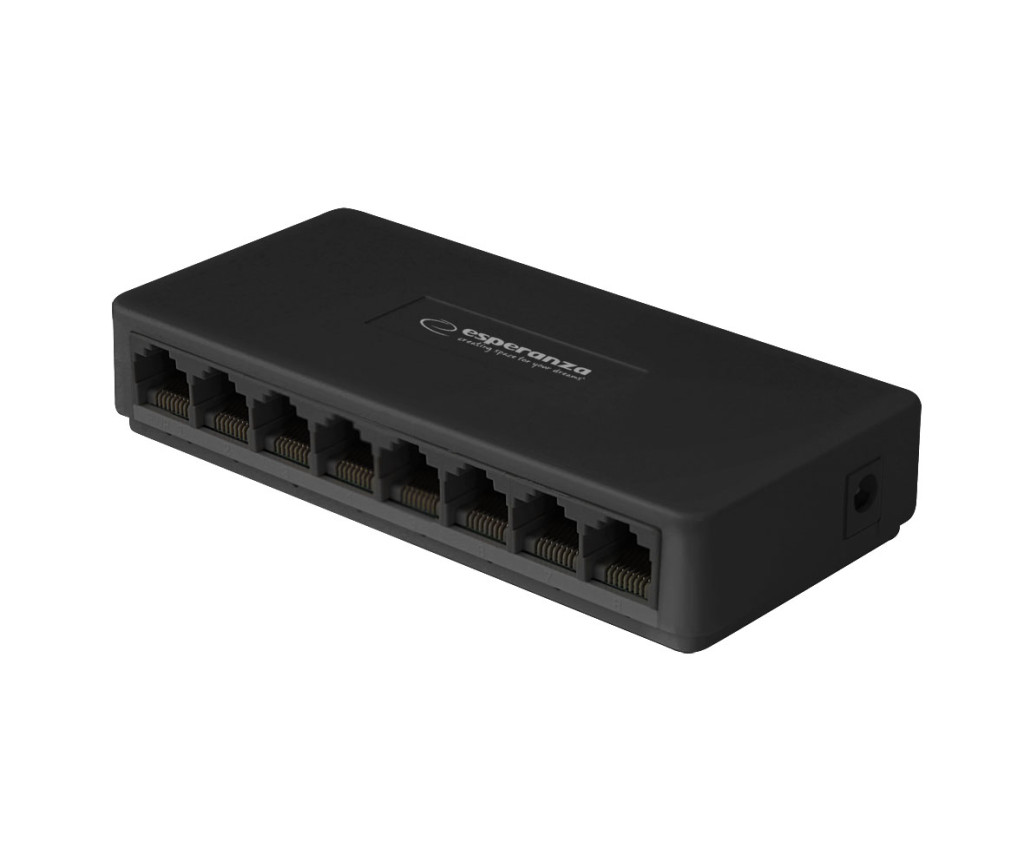

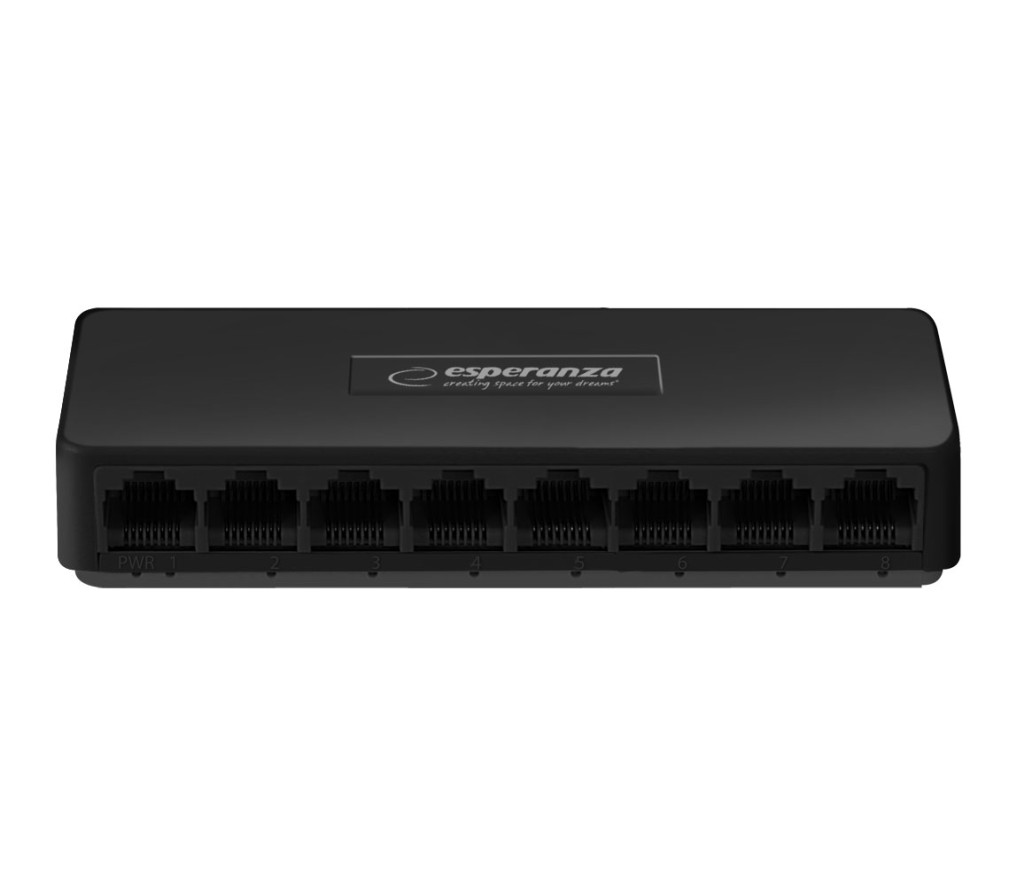

ESPERANZA ENS104 Nova 8 Port 10/100/1000 Ethernet Switch

Description

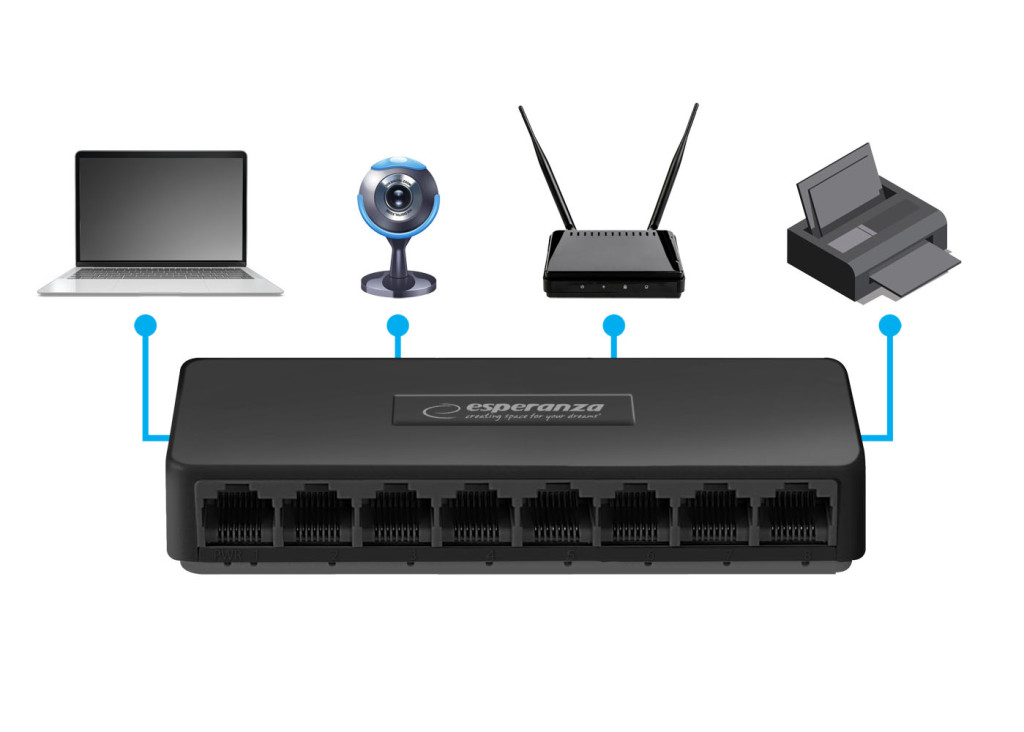

Esperanza NOVA is a high-quality gigabit 8-port desktop switch, effectively enhancing network speed. Its 8 ports (10/100/1000 Mbps) allow fast transfer of large, high-bandwidth files without interference. It is fully compatible with most network devices, such as computers, printers, webcams, and IPTV. Thanks to plug-and-play installation, connecting new devices takes only a few minutes. All ports support Auto-MDI/MDIX, eliminating the need to select the correct cable. The device has various applications and is an excellent network solution for dormitories, monitored facilities, homes, and small businesses.

Compact network switch with full functionality

 FAST TRANSFER

 STABLE CONNECTION

 PLUG & PLAY

• Ports: 8 pcs of 10/100/1000 Mbps RJ45 ports with automatic link speed detection
• Auto MDI / MDIX patching
• Standard protocol: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z
• Forwading mode: Store and Forward
• Bandwidth: 18 Gbps
• Forwarding rate: 11.9 Mpps
• Buffer memory: 4 M
• MAC address table: 2 K
• Data flow control
• Support MAC self learning and updating
• LED power and network indicator
• Power consumption:
  • standby: < 0.7 W
  • full load: 6 W
• Power: 12 V / 1 A (power adaptor 220-240 V / 50 Hz in set)
• Operating temperature: -20℃~55℃
• Storage temperature: -40℃~75℃
• Operating air humidity: 5% ~ 90%, non-condensing
• Storage humidity: 5% ~ 95%, non-condensing
• Dimensions: 128 x 60 x 24 [mm]

Files

• ENS104-Manual.pdf
