ESPERANZA ECB004 Ardor Felkaros Vérnyomásmérő

Description

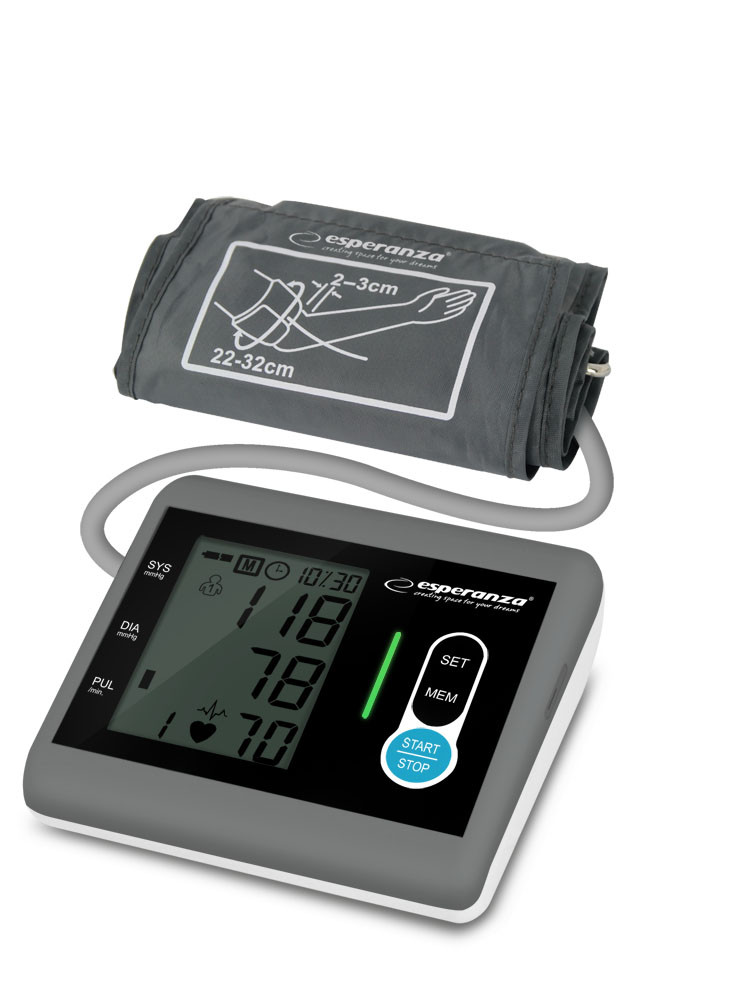

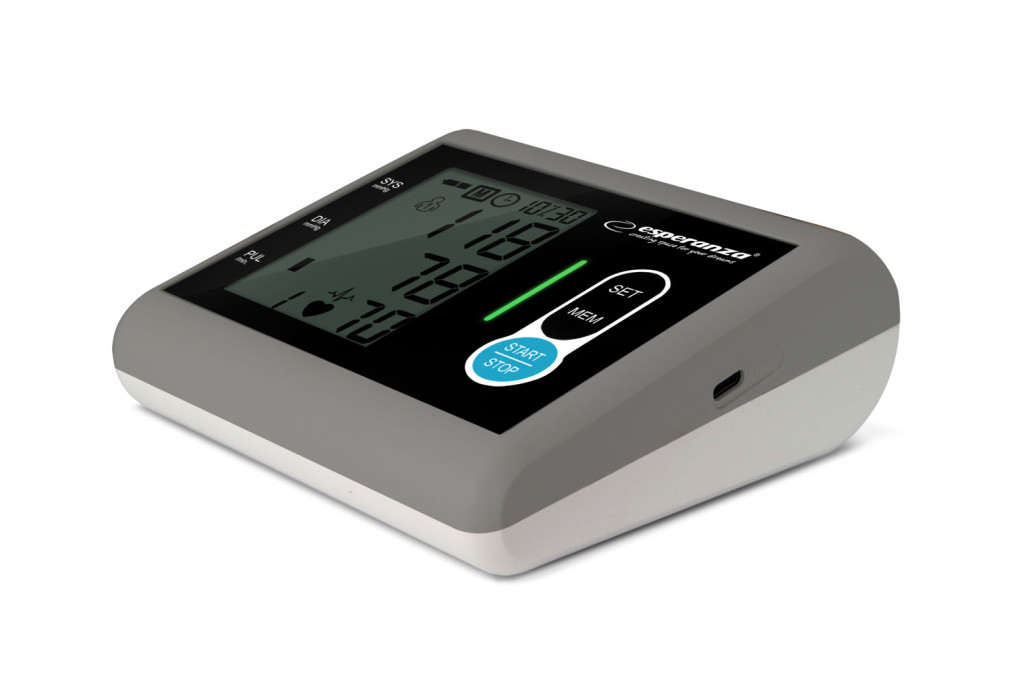

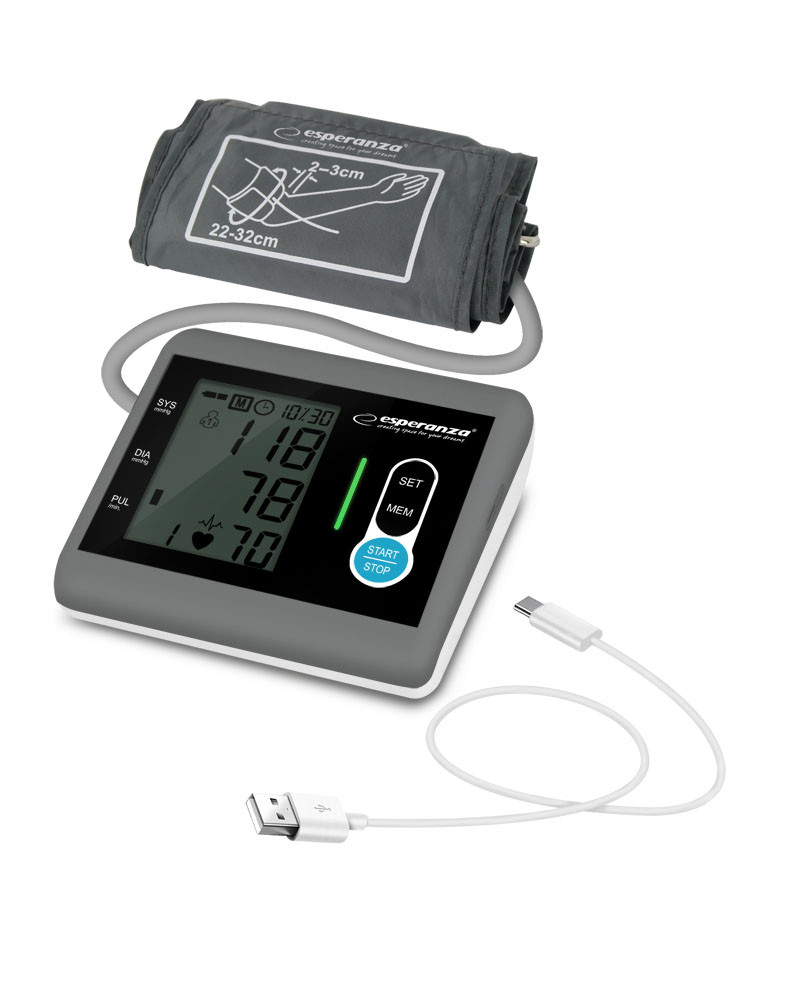

The Esperanza ARDOR upper arm blood pressure monitor is an advanced medical device designed for quick, precise, and convenient blood pressure and pulse measurements at home. Its ultra-slim design, modern appearance, and large, easy-to-read LCD screen make it highly intuitive to use. The automatic recording of results with date and time allows for consistent health monitoring and analysis of blood pressure changes over time. Equipped with an irregular heartbeat (arrhythmia) detection function, this monitor aids in the early detection of potential health issues, providing essential support for daily health management. It combines medical precision with modern user comfort, making it an excellent choice for every family.

Accurate and comfortable blood pressure monitoring

 ACCURATE MEASUREMENT

 COMPACT AND EASY TO USE

 AUTOMATIC RESULT RECORDING

• LCD display size: 52 x 70 [mm]
• Product dimensions: 126 x 130 x 50 [mm]
• Operating temperature: 5°C ~ 40°C
• Operating humidity: 15% ~ 80% RH
• Storage and shipping temperature: -25°C ~ 55°C
• Storage and shipping humidity: 10% ~ 93% RH
• Atmospheric pressure range: 86 kPa ~ 106 kPa
• Measurement method: oscillometric
• Pressure sensor: resistive
• Measurement Range:
  • DIA: 40-190 [mmHg]
  • SYS: 60-250 [mmHg]
  • Pulse: 40 ~ 180 beats per minute
• Cuff pressure display range: < 300 mmHg
• Memory: Automatically saves 90 measurements for 2 users (180 total measurements)
• Measurement resolution: 1 mmHg
• Accuracy: pressure within ± 3 mmHg, Pulse ± 5% of the reading
• Power supply:
  • A: 4 x AA batteries, 1.5 V (not included),
  • B: AC adapter (not included): Input: 220-240 V, 50/60 Hz; Output: 5 V DC 1 A

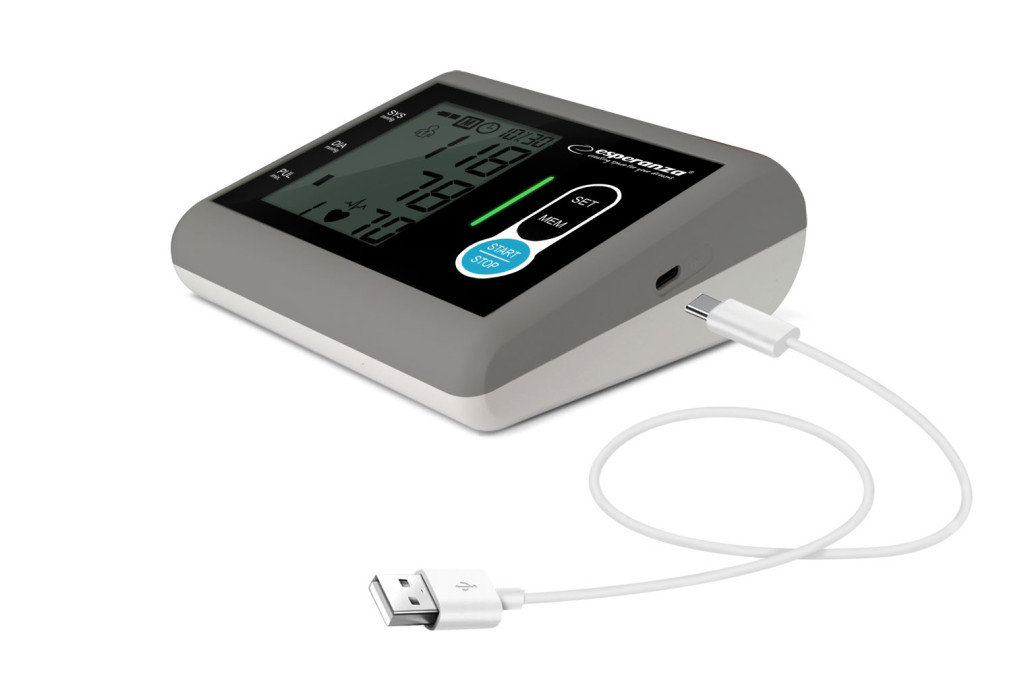

• Power cable: USB to USB-C, 50 cm
• Cuff size: 22 ~ 32 [cm]
• Automatic shut-off: after 60 seconds of inactivity

Files

• ECB004-Manual.pdf
