ESPERANZA ECN006 Respiro Kompresszoros Inhaláló

Description

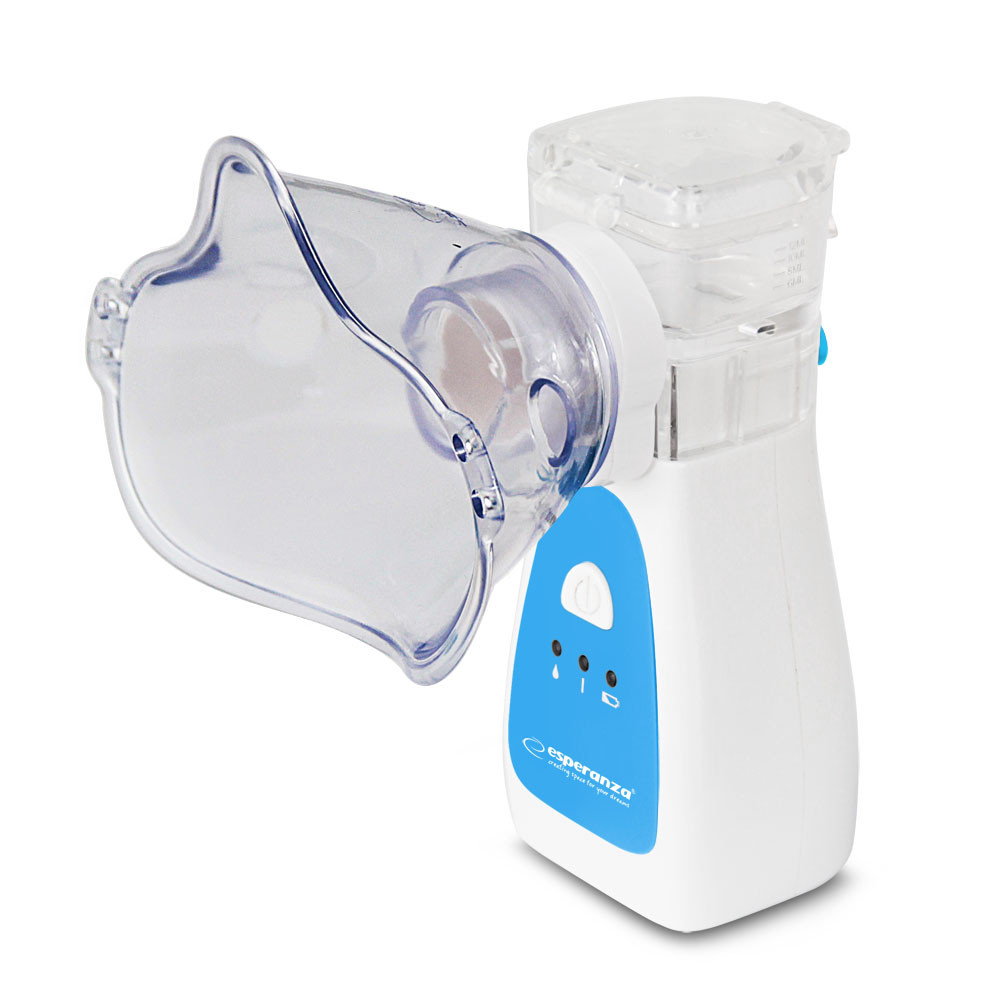

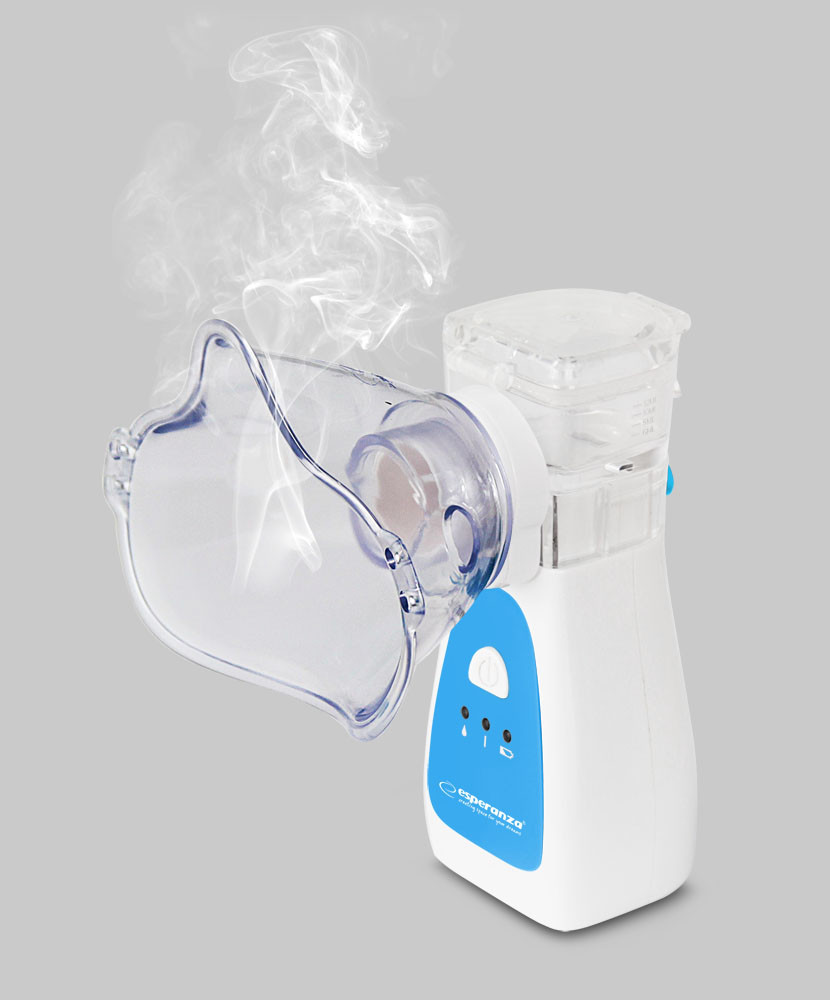

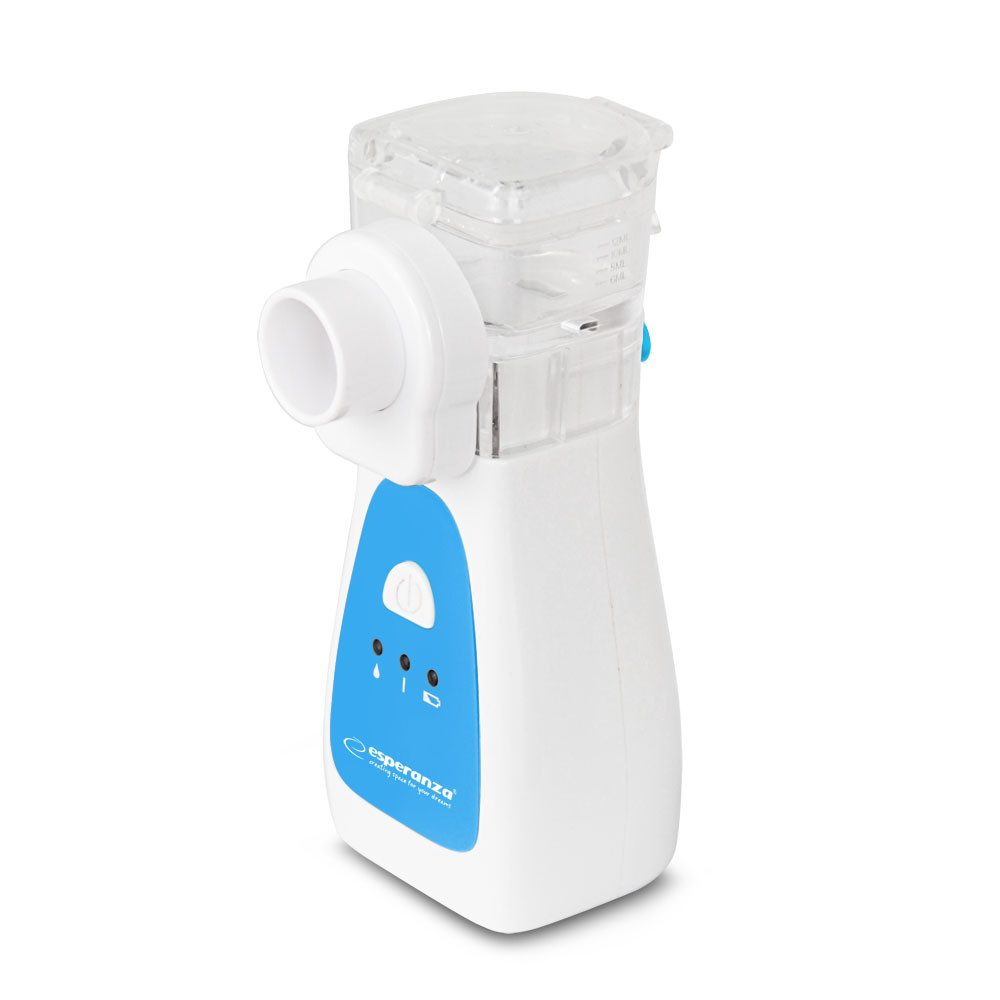

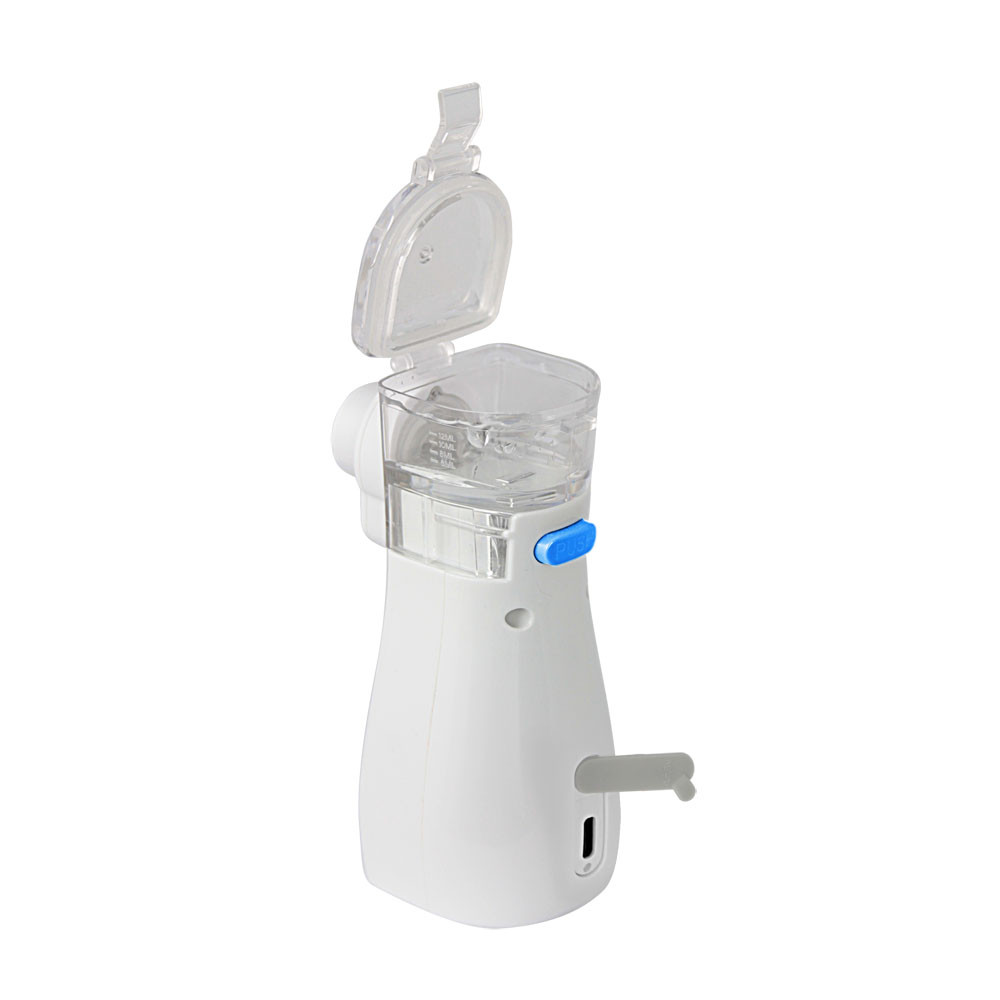

Esperanza RESPIRO inhaler (nebulizer) creates an aerosol using new mesh membrane technology. Thanks to its silent operation, you can use this device very discreetly, and its compact size allows it to fit easily into a handbag or briefcase. The device is equipped with three adjustable nebulization speeds. It ensures a long operating time—it can work for up to 4 hours on a single set of batteries.

Your support in respiratory therapy

 3 ADJUSTABLE NEBULIZATION SPEEDS

 COMPACT SIZE

 SILENT OPERATION

• Power supply: 2 x AA 1.5 V alkaline batteries (not included) / USB-C (cable included)
• Alternative power adapter: Input: 220-240 V, 50/60 Hz, 0.5 A | Output: DC 5 V/1 A (not included)
• Power consumption: < 2 W
• Ultrasound frequency: 110 ± 10 kHz
• Standby power consumption: < 0.02 W

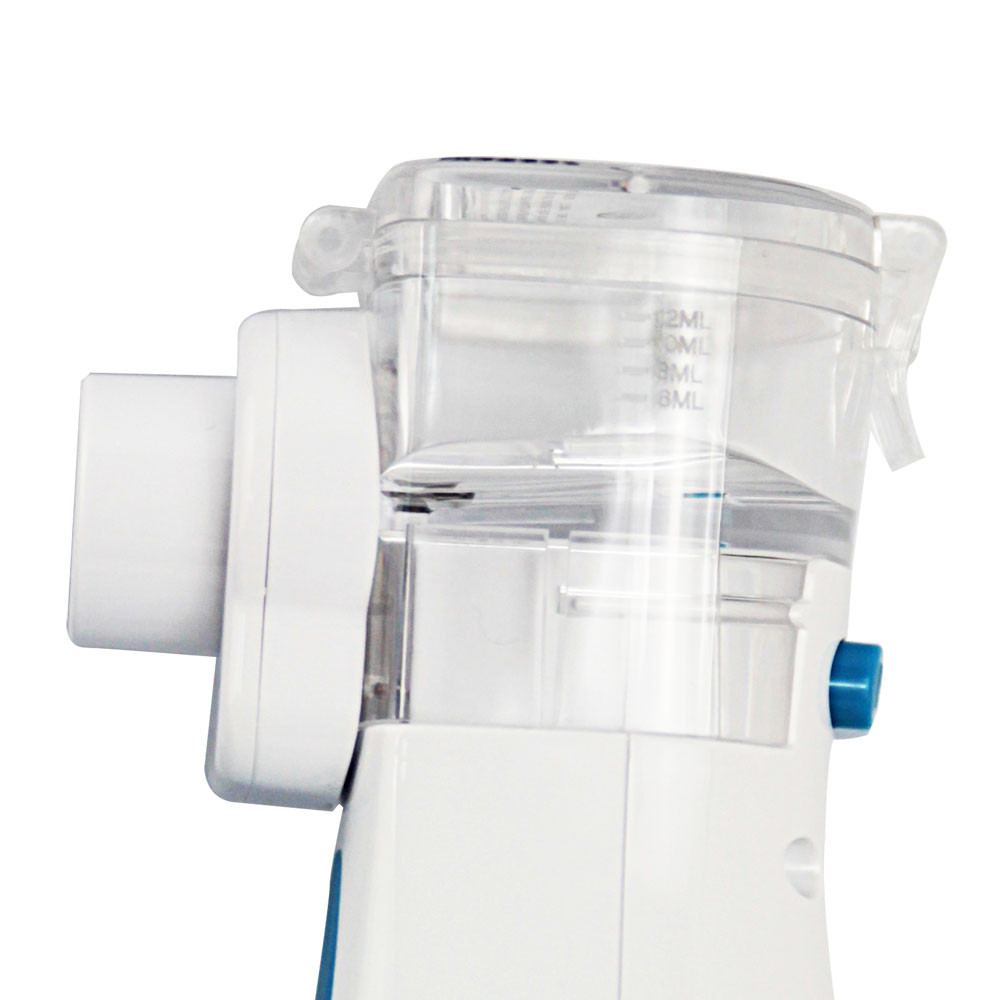

• Medication capacity: 12 ml
• Average nebulization rate: > 0.2 ml/min
• Particle size (MMAD): 2.3 µm ± 25%
• Nebulization speeds: low, medium, high
• Automatic cleaning function – ensures thorough removal of residual medication trapped in the nebulization mesh
• Auto shut-off: when medication runs out / After 20 minutes of continuous operation
• Operating temperature range: 10°C ~ 40°C
• Operating humidity range: 10% ~ 95% relative humidity
• Storage temperature range: -20°C to 70°C

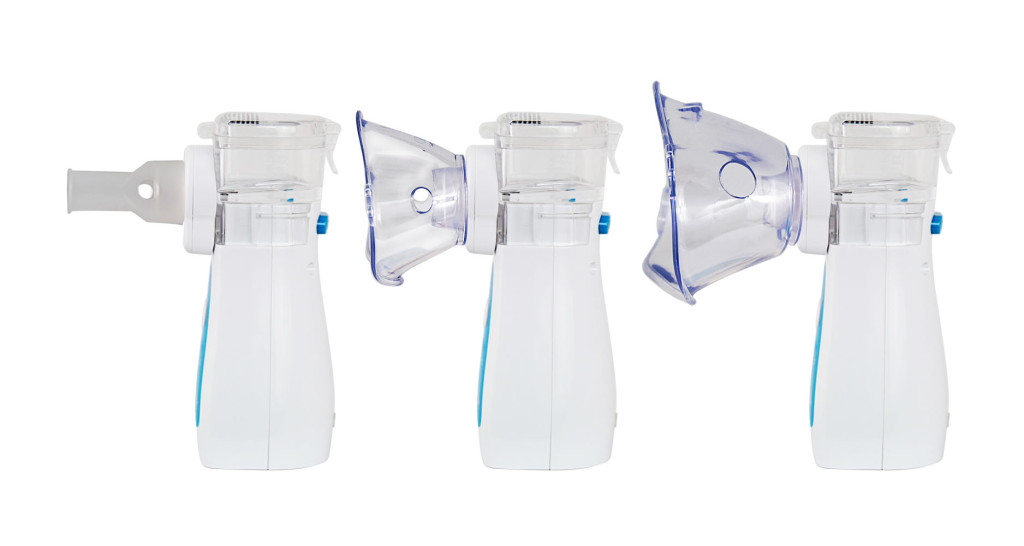

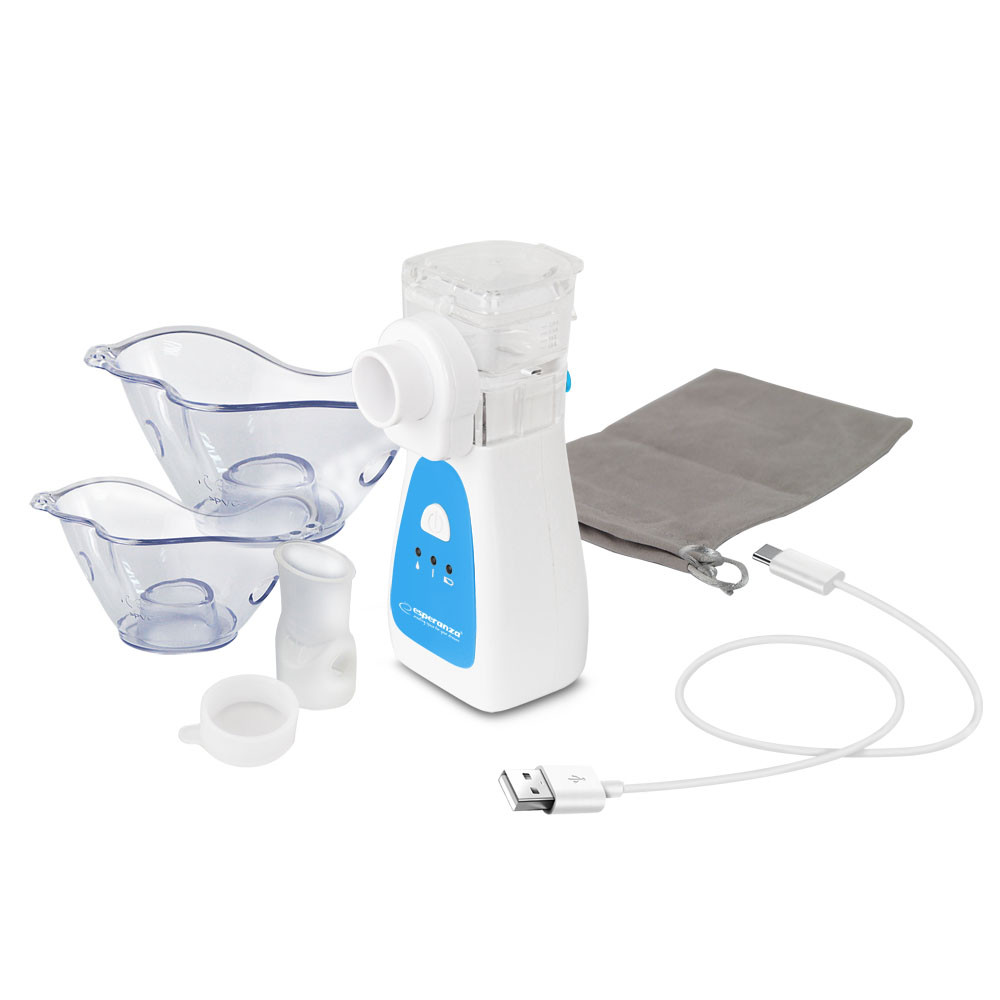

• Standard package includes: main unit, nebulization cup, adult mask, child mask, mouthpiece, protective rubber cap, USB-C cable, carrying case
• Product dimensions: 6 x 6 x 11 [cm]

The compressor nebulizer should be used under the supervision of a licensed physician or a respiratory specialist.

Files

• ECN006 - Manual.pdf
