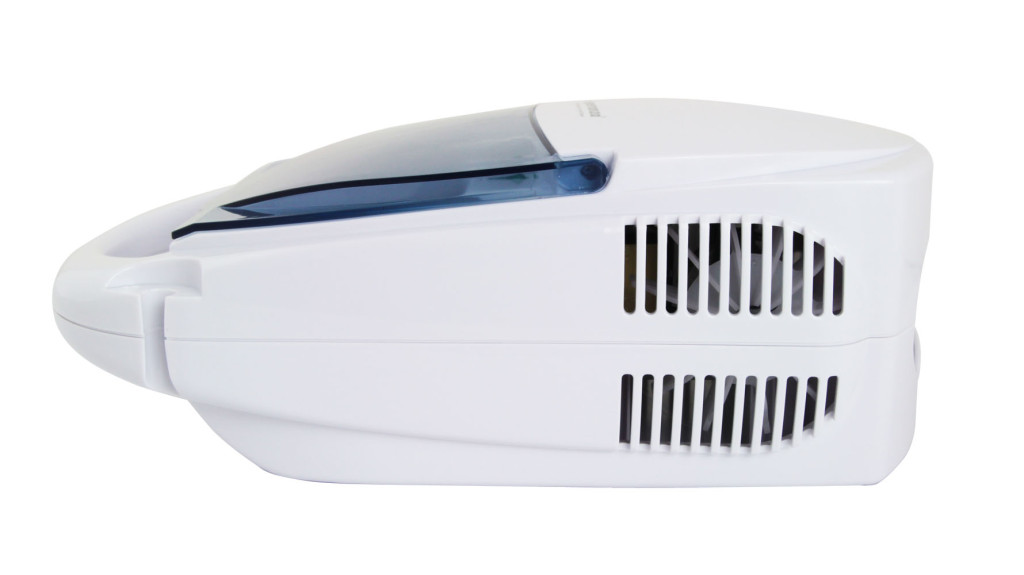

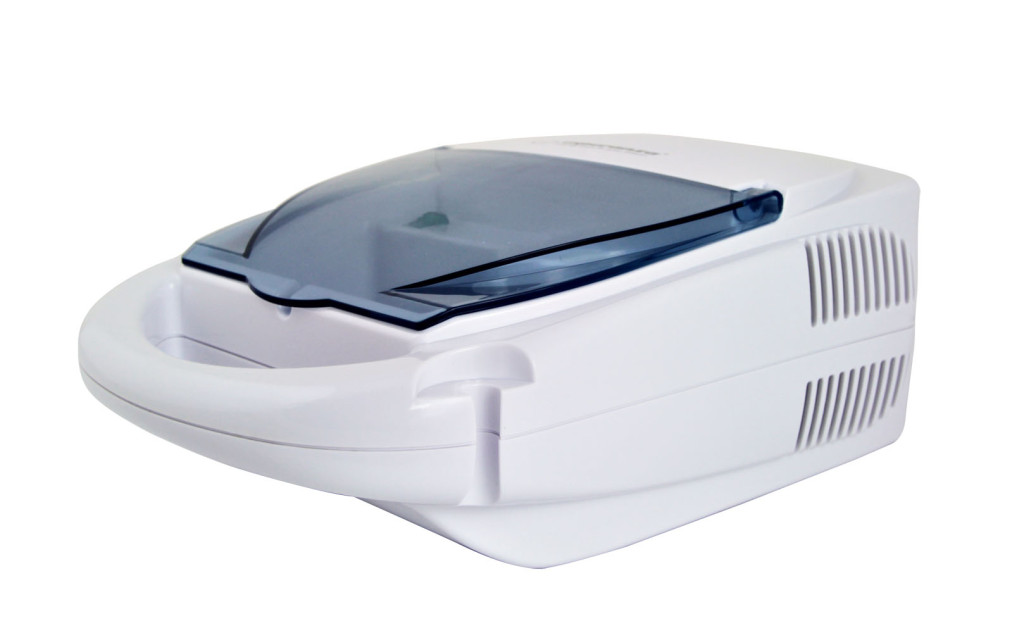

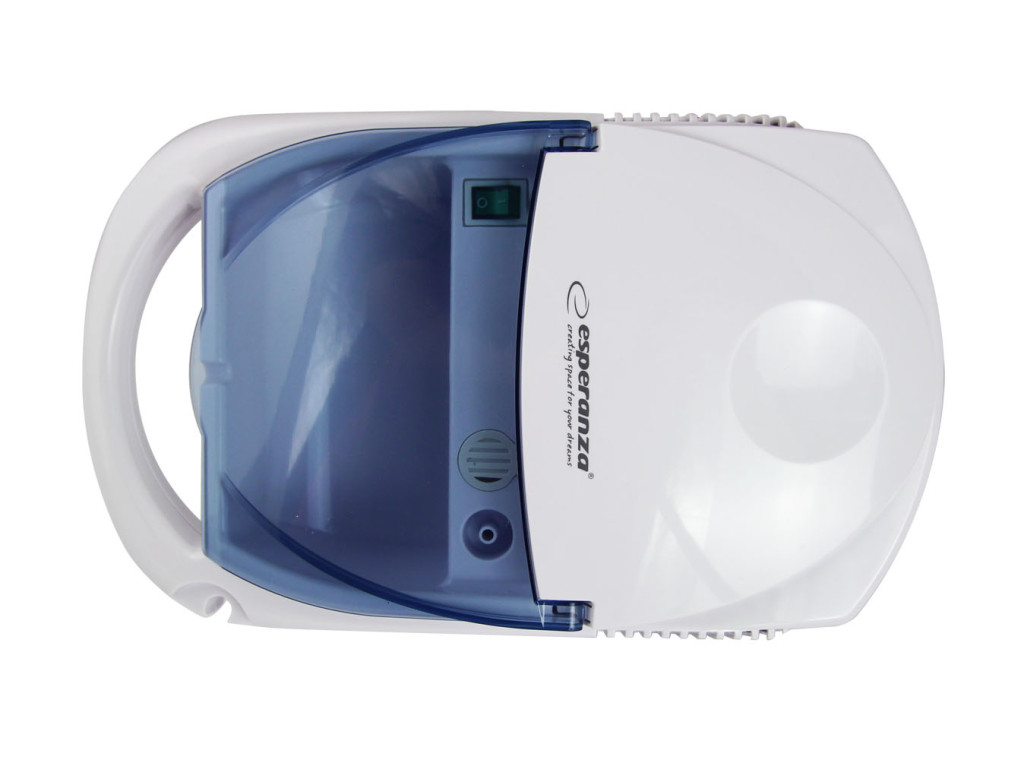

ESPERANZA ECN002 Zephyr Inhalátor, Fehér-Kék

Description

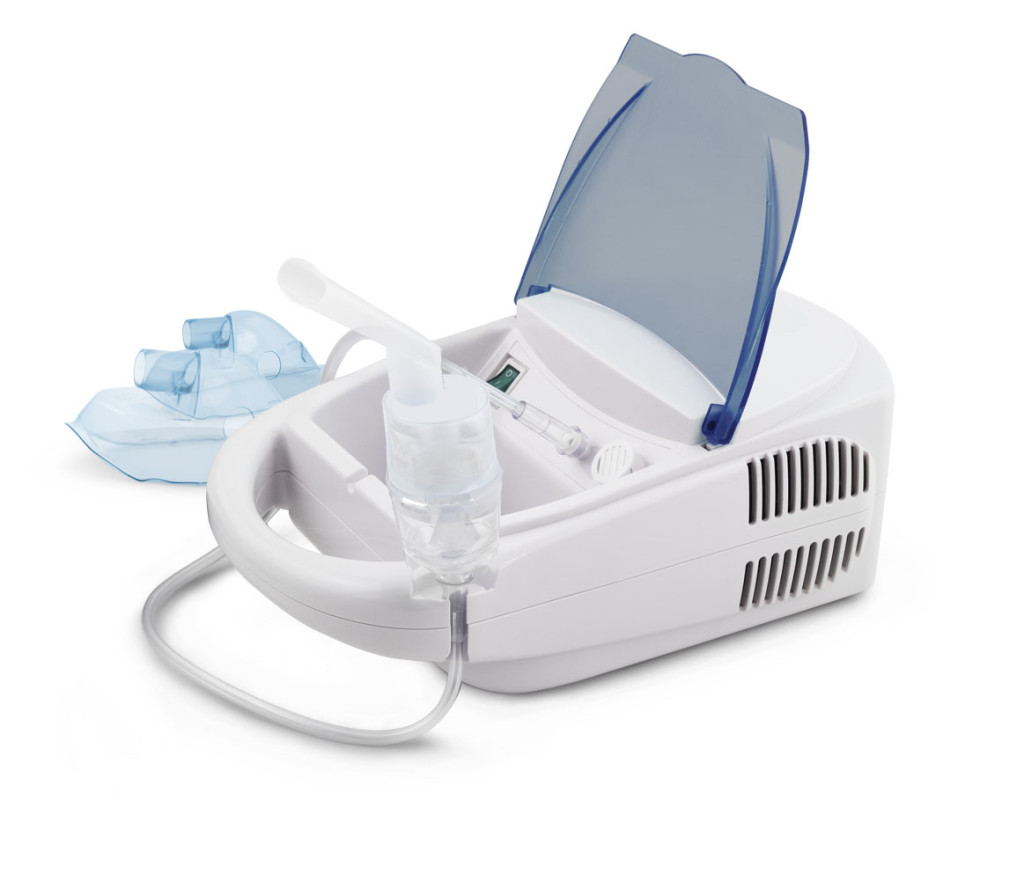

The Esperanza ZEPHYR compressor nebulizer is a compact medical device designed for the effective inhalation delivery of medication prescribed by a doctor. The product is intended to provide effective treatment for asthma, allergies, and other respiratory diseases. The device cleans the airflow, which, passing through the hose to the nebulizer, transforms the prescribed medication into a fine mist for inhalation. With proper use and maintenance, the ZEPHYR nebulizer will ensure reliable performance for many years.

Comprehensive support for respiratory system treatment

 OPTIMAL MEDICATION ABSORPTION

 SAFE AND HYGIENIC

 IDEAL FOR BOTH CHILDREN AND ADULTS

• Power supply: 220 V / 50 Hz
• Current: 0.8 A
• Medication capacity: 10 ml
• Particle size: 0.5 to 10 µm
• Respiratory fraction: ≥ 70.13% (fraction range ≤ 5 µm)
• Noise level: ≤ 65 dBA
• Average nebulization rate: ≤ 0.4 ml/min
• Compressor pressure range: 28 to 55 Psi (200 to 380 KPa / 2 to 3.8 bar)
• Operating pressure range: 9 to 19 Psi (60 to 130 KPa / 0.6 to 1.3 bar)
• Airflow range: ≤ 8 L/min
• Operating temperature range: 10°C to 40°C (50°F to 104°F)
• Operating humidity range: 10% to 95% RH
• Storage temperature range: -20°C to 70°C (-4°F to 158°F)

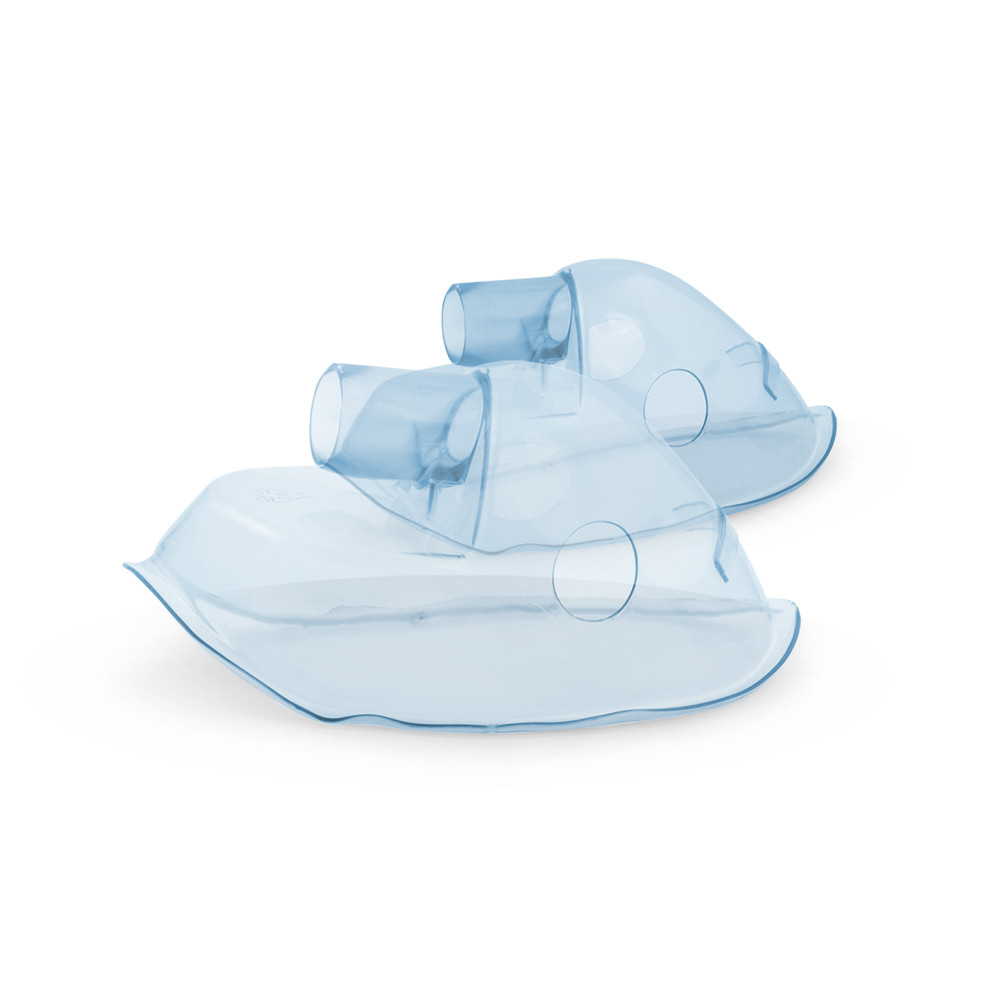

• Standard accessories: nebulizer, air tube, adult mask, child mask, mouthpiece

The compressor nebulizer should be used under the supervision of a licensed physician or therapist, a respiratory specialist.

Files

• ECN002-Manual.pdf
