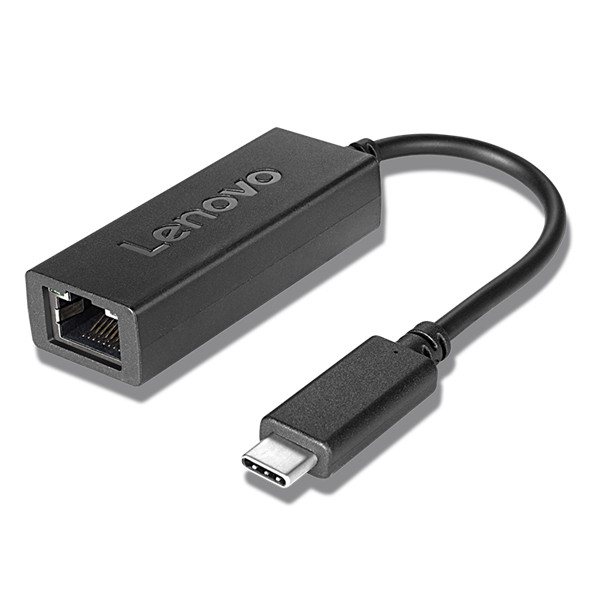

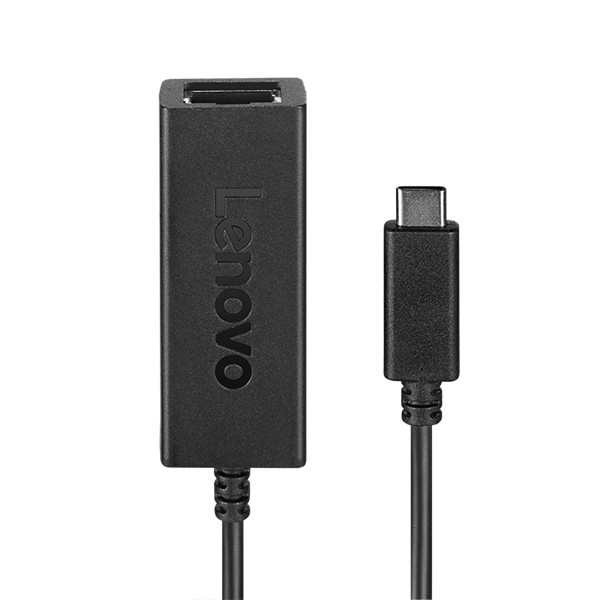

LENOVO Átalakító adapter - USB-C to Ethernet

12 740 Ft

LENOVO Átalakító adapter - USB-C to Ethernet

Name: LENOVO Átalakító adapter - USB-C to Ethernet
Brand: LENOVO
Price: 12740 HUF
Availability: InStock

Külső raktáron - Szállítási idő: 3-5 munkanap

12 740 Ft

Gyártó:

LENOVO

Gyártói cikkszám:

4X90S91831

EAN:

193124150345

Garancia:

12 hónap

Várható feladás dátuma:

3-5 munkanap

Várható szállítás:

2025.06.26

Használati utasítás:

LENOVO Átalakító adapter - USB-C to Ethernet

Részletek

https://accessorysmartfind.lenovo.com/products/4X90S91831

Feature

Product Description

The Lenovo USB-C to Ethernet Adapter is quick and easy way to connect your USB-C enabled notebook to Ethernet connections. It’s ideal for imaging of systems or transferring large files quickly.

Top Features

· Sleek design
· Full-size RJ45 connector
· LEDs on RJ45 connector to indicate activity and link status
· Support PXE boot, Wake-On-LAN, MAC pass through if host notebook supports Note: Depending on many factors such as the processing capability of the host and peripheral devices, file attributes, and other factors related to system configuration and operating environments, the actual data transfer rate will be slower than 5 Gbit/s on USB 3.1 Gen 1 (USB 3.0) connectors, slower than 10 Gbit/s on USB 3.1 Gen 2 connectors, and slower than 20Gbit/s on USB 3.2 connectors.

Tech Specs

Warranty Terms	1year
Product Title	Lenovo USB-C to Ethernet Adapter
Agency Approvals	• CB • USA: FCC • Canada: ICES • European Union: CE • Australia / New Zealand: C-tick • Japan: VCCI • Ukraine • Customs Union: EAC
Brand	Lenovo
Color	Black
Connectivity	USB Type-C
EAN	193124150345
UPC	193124150345
JAN	4589702068250
Ethernet	Meet IEEE802.3ab network specification for Gigabit data rate transmit Meet IEEE802.3 network specification 100Mbps data rate transmit LEDs on connector to indicate activity and link status
Hardware Requirements	Only shall connect to a host system or USB Type C hub implement USB Type C female connector which serves as a Downstream Facing Port (DFP)
Hot Plug	Support flippable plug into Type C female connector
Maximum Relative Humidity(%)	95
Maximum Temperature(?)	40
Maximum Temperature(?)	104
Minimum Relative Humidity(%)	20
Minimum Temperature(?)	-5
Minimum Temperature(?)	23
OS Requirements	• Microsoft Windows7 (32bit & 64bit) • Microsoft Windows10 (64bit)
Other Electrical Specifications	Support PXE boot and load image from remote server are required both on legacy BIOS and UEFI BIOS system if host systems support Support Wake-On-LAN from S3 if host system support Support MAC pass through on selected ThinkPad notebook systems
Other Operating Environment	To get the latest device driver for the Lenovo® USB C to Ethernet Adapter, go to http://support.lenovo.com/docs/usbc_to_ethernet_adapter
Package Type	PE bag
Packed Physical Specification(Dimension)(in)	9.7x4.7x0.6
Packed Physical Specification(Dimension)(mm)	245x120x15
Packed Weight	44g
Shipment Group	Lenovo USB C to Ethernet Adapter, Publications
Support PXE Boot	If PXE-Boot function is to be applied through Type C to Ethernet Adapter, please first confirm host system’s Type C port would support.
Unpacked Physical Specification(Dimension)(in)	8.1x0.8x0.5
Unpacked Physical Specification(Dimension)(mm)	207x21x13
Unpacked Weight	24g

Compatibility

Operating System

OS Independent

Compatible Machines

Description	ID	Footnote
Business Edition Miix Series-Lenovo MIIX 520-12IKB	20M3
Business Edition Miix Series-Lenovo MIIX 520-12IKB	20M4
EM-Chromebook(100s Chromebook)-Lenovo 300e Chromebook	81H0
EM-Chromebook(100s Chromebook)-Lenovo 500e Chromebook	81ES
MIIX 300-Lenovo MIIX 320-10ICR	80XF
MIIX 500-Lenovo MIIX 510-12IKB	80XE
MIIX 500-Lenovo MIIX 520-12IKB	81CG
ThinkCentre M Tiny Series-ThinkCentre M710q	10MQ
	10MR
	10MS
	10MT
	10N3
	10QR
ThinkCentre M Tiny Series-ThinkCentre M910q	10MU
	10MV
	10MW
	10MX
	10N4
	10QN
ThinkCentre M Tiny Series-ThinkCentre M910x	10MY
	10N0
	10N1
	10N2
	10QQ
	10R4
ThinkCentre M Traditional Desktop Series-ThinkCentre M910s	10MK
	10ML
	10NA
	10QM
ThinkCentre M Traditional Desktop Series-ThinkCentre M910t	10MM
	10MN
	10N9
	10QL
ThinkPad E Series-E485	20KU
ThinkPad E Series-E490	20N8
ThinkPad E Series-E490	20N9
ThinkPad E Series-E490s	20NG
ThinkPad E Series-E585	20KV
ThinkPad L Series-L380	20M5
	20M6
	20M7
	20M8
ThinkPad L Series-L390	20NR
	20NS
	20NT
	20NU
ThinkPad L Series-L480	20LS
ThinkPad L Series-L480	20LT
ThinkPad L Series-L580	20LW
ThinkPad L Series-L580	20LX
ThinkPad P Series-P1	20MD
ThinkPad P Series-P1	20ME
ThinkPad P Series-P51	20HH
ThinkPad P Series-P51s	20HB
	20HC
	20JY
	20K0
ThinkPad P Series-P52	20M9
ThinkPad P Series-P52	20MA
ThinkPad P Series-P52s	20LB
ThinkPad P Series-P52s	20LC
ThinkPad P Series-P71	20HK
ThinkPad P Series-P71	20HL
ThinkPad P Series-P72	20MB	115. Support on-board ports only.
ThinkPad P Series-P72	20MC	115. Support on-board ports only.
ThinkPad T Series-T470	20HD
	20HE
	20JM
	20JN
ThinkPad T Series-T470s	20HF
	20HG
	20JS
	20JT
ThinkPad T Series-T480	20L5
ThinkPad T Series-T480	20L6
ThinkPad T Series-T480s	20L7
ThinkPad T Series-T480s	20L8
ThinkPad T Series-T490	20N2	115. Support on-board ports only.
ThinkPad T Series-T490	20N3	115. Support on-board ports only.
ThinkPad T Series-T490s	20NX	115. Support on-board ports only.
ThinkPad T Series-T490s	20NY	115. Support on-board ports only.
ThinkPad T Series-T495	20NJ	115. Support on-board ports only.
ThinkPad T Series-T495	20NK	115. Support on-board ports only.
ThinkPad T Series-T570	20H9
	20HA
	20JW
	20JX
ThinkPad T Series-T580	20L9
ThinkPad T Series-T580	20LA
ThinkPad T Series-TP25	20K7	274. Support on-board ports only.Support Mac Pass Through function if the label attached on the adapter shows the ASM PN is SC10P27625.
ThinkPad X Series 2nd gen-11e 5th Gen	20LM
	20LN
	20LQ
	20LR
ThinkPad X Series 2nd gen-13 2nd Gen	20J1
ThinkPad X Series 2nd gen-13 2nd Gen	20J2
ThinkPad X Series 2nd gen-ThinkPad 11e	20HW
	20HX
	20HY
	20J0
ThinkPad X Series 2nd gen-ThinkPad 13	20GJ
ThinkPad X Series 2nd gen-ThinkPad 13	20GK
ThinkPad X Series 2nd gen-ThinkPad Yoga 370	20JH
ThinkPad X Series 2nd gen-ThinkPad Yoga 370	20JJ
ThinkPad X Series 2nd gen-X1 Carbon 5th Generation	20HQ
	20HR
	20K3
	20K4
ThinkPad X Series 2nd gen-X1 Carbon 6th Generation	20KG
ThinkPad X Series 2nd gen-X1 Carbon 6th Generation	20KH
ThinkPad X Series 2nd gen-X1 Extreme 1st Generation	20MF
ThinkPad X Series 2nd gen-X1 Extreme 1st Generation	20MG
ThinkPad X Series 2nd gen-X1 Yoga	20JD
	20JE
	20JF
	20JG
ThinkPad X Series 2nd gen-X1 Yoga 3rd Generation	20LD
	20LE
	20LF
	20LG
ThinkPad X Series 2nd gen-X270	20K5
ThinkPad X Series 2nd gen-X270	20K6
ThinkPad X Series 2nd gen-X280	20KE
ThinkPad X Series 2nd gen-X280	20KF
ThinkPad X Series 2nd gen-X380 Yoga	20LH
ThinkPad X Series 2nd gen-X380 Yoga	20LJ
ThinkPad X Series 2nd gen-X390	20Q0	274. Support on-board ports only.Support Mac Pass Through function if the label attached on the adapter shows the ASM PN is SC10P27625.
ThinkPad X Series 2nd gen-X390	20Q1	274. Support on-board ports only.Support Mac Pass Through function if the label attached on the adapter shows the ASM PN is SC10P27625.
ThinkPad X Series-A485	20MU
ThinkPad X Series-A485	20MV
ThinkPad X Series-ThinkPad A475	20KL
ThinkPad X Series-ThinkPad A475	20KM
ThinkPad X Series-ThinkPad X270	20HM
	20HN
	20KC
ThinkPad X1 Tablet-ThinkPad X1 Tablet	20GG
	20GH
	20JB
	20JC
ThinkPad X1 Tablet-ThinkPad X1 Tablet Gen 3	20KJ
ThinkPad X1 Tablet-ThinkPad X1 Tablet Gen 3	20KK
Y900 Series-Lenovo ideapad Y910-17ISK	80V1
	20L3
	20L4
	20LK
	20MW
	20MX
	20NE	115. Support on-board ports only.
	20NF	115. Support on-board ports only.
	20NN	115. Support on-board ports only.
	20NQ	115. Support on-board ports only.
	20R9
	81H3
	81NS
	81Q4
	81T0
	81T3
	81UF
	81UG
	81UH
	81UJ

Adatok

Vég1:

USB-C

Vég2:

RJ45 ethernet

Funkció:

Átalakító

Kategória:

PC Egyéb

Szín:

Fekete

Gyártó:

LENOVO

EAN:

193124150345
