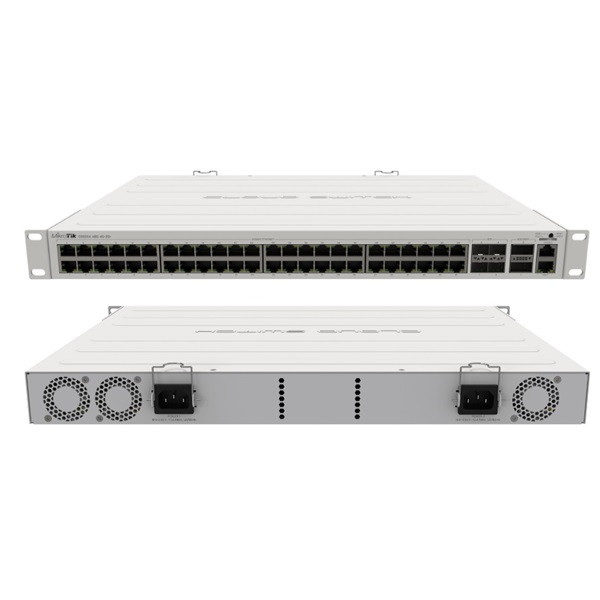

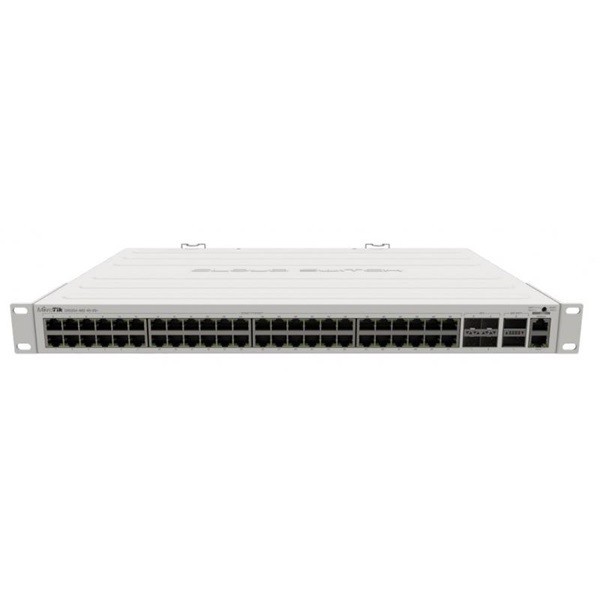

MIKROTIK Cloud Router Switch 48x1000Mbps + 4x10Gbps SFP+ + 2x40Gbps QSFP+, Rackes - CRS354-48G-4S+2Q+RM

• Részletek
• Adatok
• Vélemények

Részletek

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less! <

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.



Specifications

Details
Product code	CRS354-48G-4S+2Q+RM
Architecture	MIPSBE
CPU	QCA9531
CPU core count	1
CPU nominal frequency	650 MHz
Dimensions	297 x 443 x 44 mm
RouterOS license	5
Operating System	RouterOS
Size of RAM	64 MB
Storage size	16 MB
Storage type	FLASH
MTBF	Approximately 200'000 hours at 25C
Tested ambient temperature	-20°C to 60°C



Powering

Details
Number of AC inputs	2
AC input range	100-240
Max power consumption	60 W
Max power consumption without attachments	50 W
FAN count	3



Ethernet

Details
10/100 Ethernet ports	1
10/100/1000 Ethernet ports	48



Fiber

Details
SFP+ ports	4
Number of 40G QSFP+ ports	2



Peripherals

Details
Serial port	RJ45



Other

Details
CPU temperature monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes



Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Adatok

Portok száma:

48

Rack-be szerelhető:

Van

Switching kapacitás:

336

SFP port:

6

Gyártó:

MIKROTIK

EAN:

4752224002266
