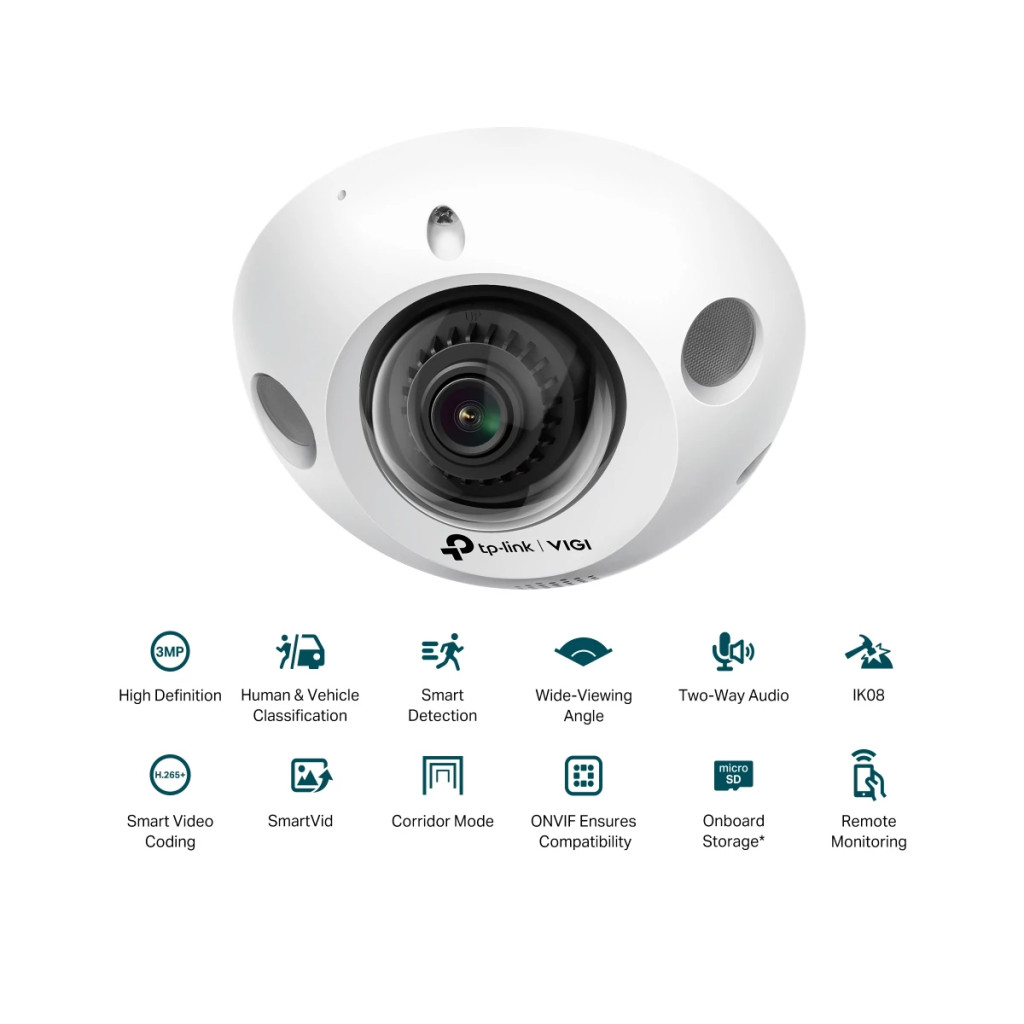

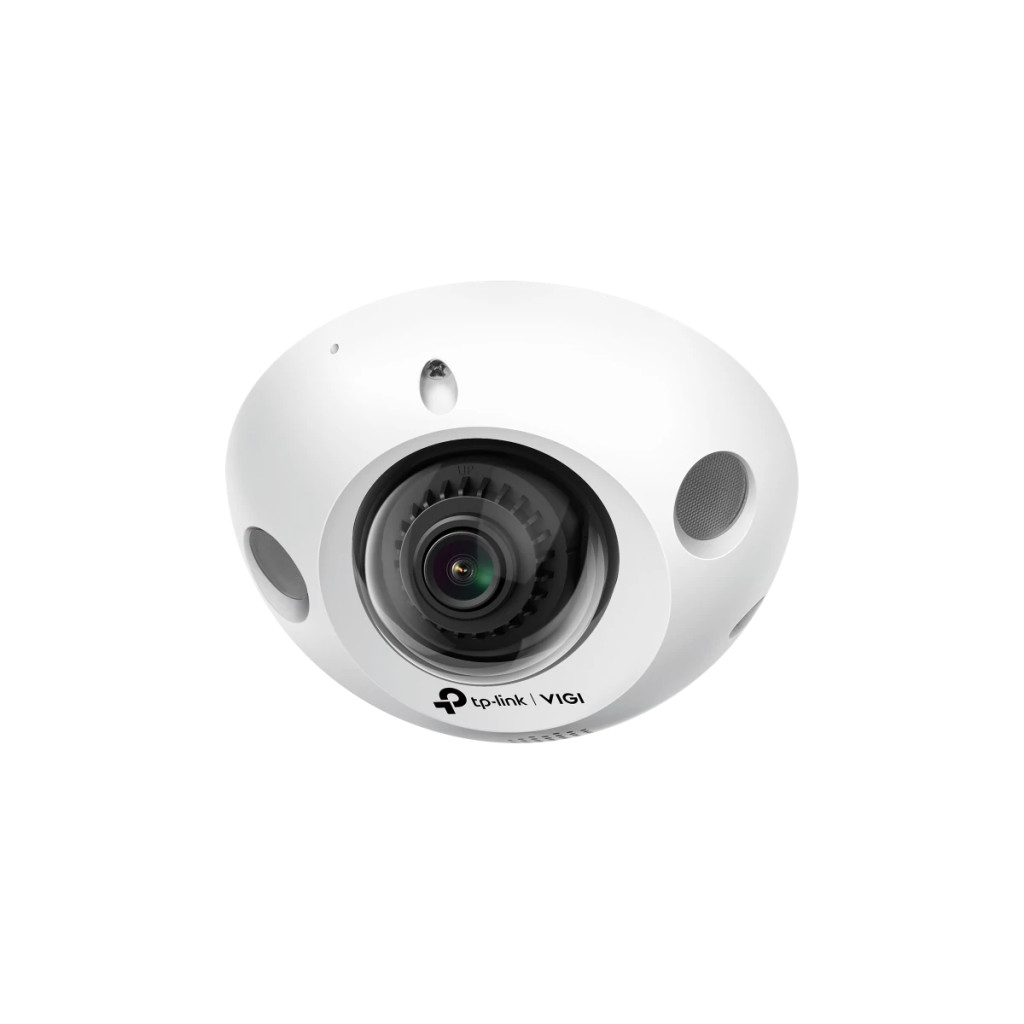

TP-LINK IP Kamera kültéri/beltéri éjjellátó 3 Megapixel, 2.8mm Objektív, VIGI C230I MINI(2.8MM)

• Részletek
• Adatok
• Vélemények

Részletek

CAMERA
Image Sensor	1/2.8” Progressive Scan CMOS
Lens	2.8 mm
Aperture	F1.6
Lens Mount	M12
Viewing Angle	Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Day/Night Mechanism	IR Cut Filter
IR Working Distance	30m
Minimum Illumination	Color: 0.1 Lux; 0 Lux with IR
Digital Noise Reduction	3D DNR
WDR	DWDR

NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web

GENERAL
Package Contents	VIGI Network Camera Quick Start Guide Mounting Accessories Mounting Template
Operating Temperature	-30–60 °C
Certifications	CE/VCCI/BSMI/KC/ONVIF
Dimensions( H X W X D )	114 × 114 × 58 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
Power Consumption	12V DC: Max 7.5W PoE: Class 0
Vandal Resistant	IK08

VIDEO/IMAGE
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 Sub-Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704x576, 640x480, 352x288, 320x240
Max. Resolution	3MP (2304 × 1296)
Video Streaming	3 Main Streams 3 Sub-Streams
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Video Bit Rate	64 Kbps to 4 Mbps
Day/Night Switch	Day/Night/Auto/Schedule

SMART FEATURE-SET
Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Button	Reset Button
Video Output	-
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone	Yes
Built-in Speaker	Yes

Adatok

Gyártói cikkszám:

VIGI C230I MINI(2.8MM)

Csatlakozók:

LAN

Felbontás:

1920 x 1080 (FHD1080) 16:9

Színes/FF:

Színes

Kültéri kivitel:

Igen
