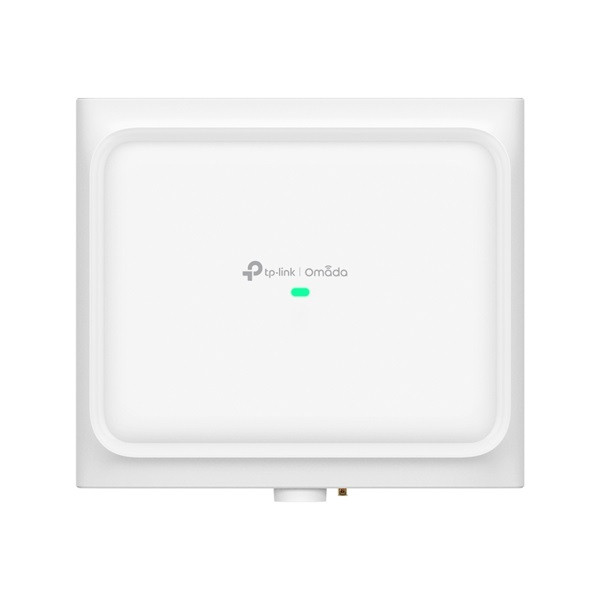

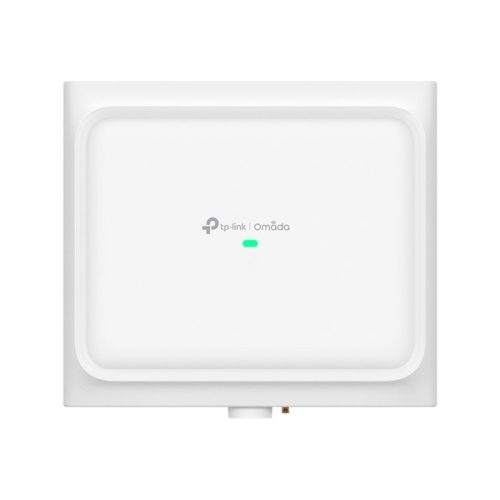

TP-LINK Wireless Access Point Tri-Band BE11000 Wifi 7 Beltéri/Kültéri, EAP772-OUTDOOR

• Részletek
• Adatok
• Vélemények

Részletek

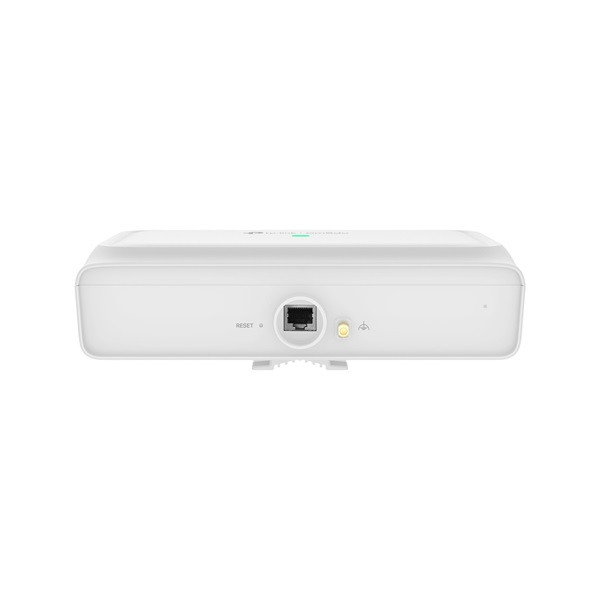

HARDWARE FEATURES Interface 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE) Button Reset Power Supply • 802.3at PoE Max. Power Consumption • EU: 21.5W (for PoE) • US: 23W (for PoE) Dimensions ( W x D x H ) 9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm) Antenna • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6 dBi • 6 GHz: 2× 6 dBi GNSS L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals Receive sensitivity: -164dBm (tracking) GPS antennas: Integrated 3dBi omnidirectional antennas Bluetooth BLE 5.2 Weatherproof Enclosure IP68 Mounting Pole/Wall Mounting (Kits included) WIRELESS FEATURES Coverage 300m2 (3,200ft2) Recommended Omnidirectional Coverage Concurrent Clients 250+6 Wireless Standards IEEE 802.11be/ax/ac/n/g/b/a Frequency 2.4 GHz, 5 GHz, 6 GHz Signal Rate • 802.11be: 8.6 Mbps to 5765 Mbps (MCS0-MCS13, NSS = 1 to 2 HE20/40/80/160/240/320) • 802.11ax: 8.6 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) • 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80/160) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Wireless Functions • 4k-QAM • Multiple SSlDs • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • MLO • 320MHz • Omada Mesh3 • Seamless Roaming(802.11k/v/r)3 • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP Wireless Security • Captive Portal Authentication3 • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <28 dBm(5 GHz, band 3, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz), <25 dBm(6 GHz) Management Features Omada App Yes Centralized Management Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Cloud Access Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Email Alerts Yes Management MAC Access Control Yes SNMP v1, v2c System Logging Local/Remote Syslog Yes SSH Yes Web-based Management Yes L3 Management Yes Multi-site Management Yes Management VLAN Yes Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller OTHERS Certification CE, FCC, RoHS Package Content • Access Point EAP772-Outdoor • Power Cord • Mounting Kits • Installation Guide System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux Environment • Operating Temperature: -30–70 ? (-22–158 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Adatok

Frekvencia:

2.4 GHz és 5 GHz és 6 GHz

Szabvány:

802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, 802.11be

Kültéri kivitel:

Van

Bridge funkció:

Van

Wifi sebesség:

5300 Mbit/s

LAN sebesség:

10/100/1000/2500 Mbit/s

WAN sebesség:

10/100/1000/2500 Mbit/s

POE adapter:

Van

Gyártó:

TP-LINK

EAN:

1210002602280
